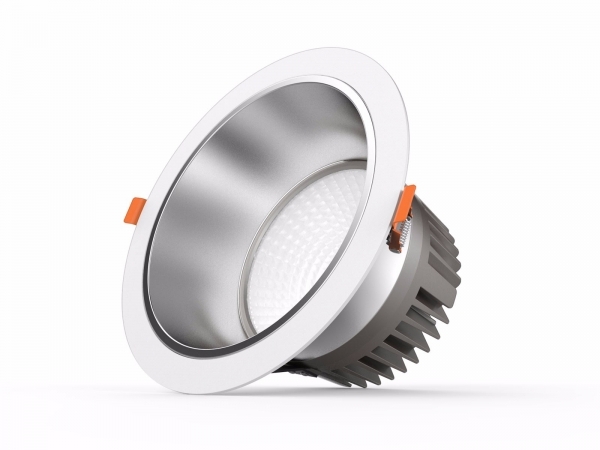

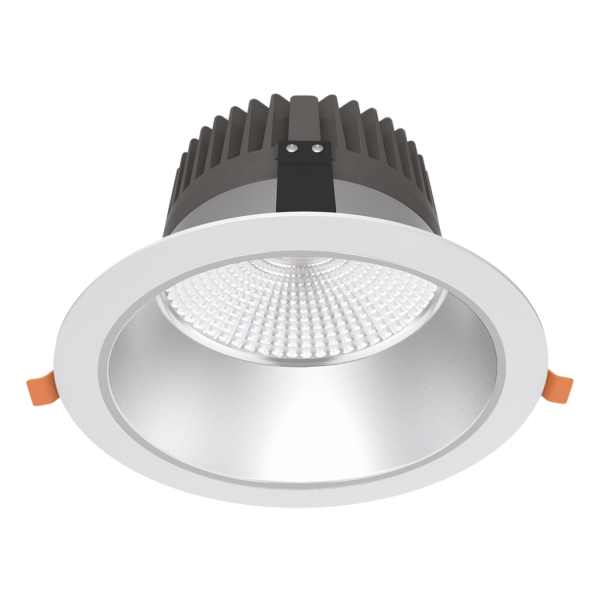

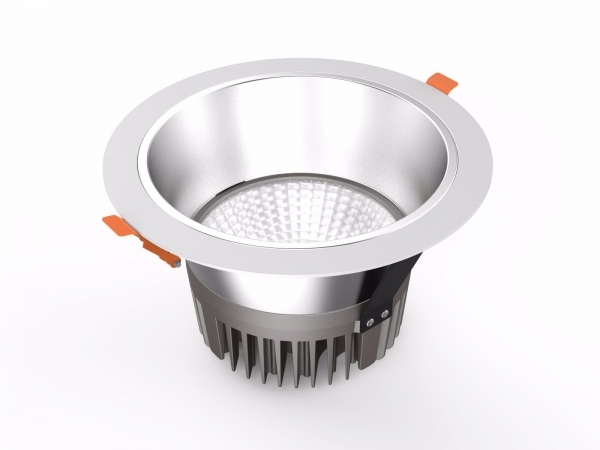

AVIOR 4 UGR<19

OPTICAL SYSTEM

Lifetime: 40 000 h (L-70)
Light source: Citizen COB (Chip On Board)
High-gloss reflector, aluminium

STRUCTURE

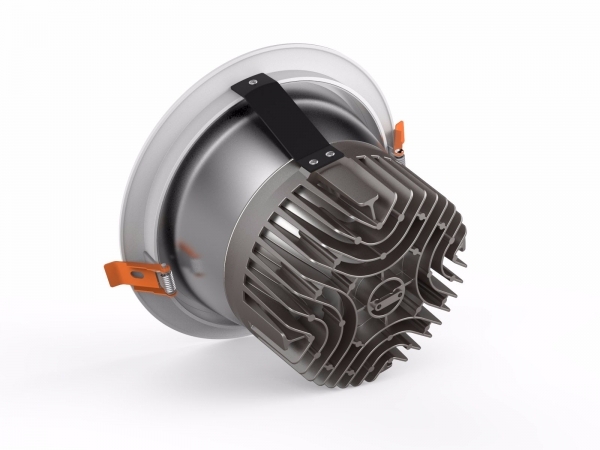

Cooling, passive
Aluminium body, high-pressure moulding
CE Qualification
Easy to assemble
Protection: IP20

DOWNLOADS

▼ 301179 Installation guide
▼ 301179 Datasheet
▼ 301216 Datasheet
▼ 301245 Datasheet
▼ 301246 Datasheet
▼ 301247 Datasheet
▼ 301248 Datasheet

APPLICATION

Indoors
Institutions
Hotels
Public areas
Shopping malls
Offices

OPTIONS

1-10V Regulation
DALI
touch dimm

VARIANTS

Ordering Code Light Output
[lm]		 CRI System Power
[W]		 Color Temperature
[K]		 Beam Angle Dimming Dimensions
[mm]		 Warranty
[year]		 Eulumdat
301246 1320 >80 10 3000 36° TD ø190x127 5
301179 1320 >80 10 3000 36° - ø190x127 5
301247 2440 >80 17 3000 36° TD ø190x127 5
301216 2440 >80 17 3000 36° - ø190x127 5
301248 3300 >80 25 3000 36° TD ø190x127 5
301245 3300 >80 25 3000 36° - ø190x127 5
