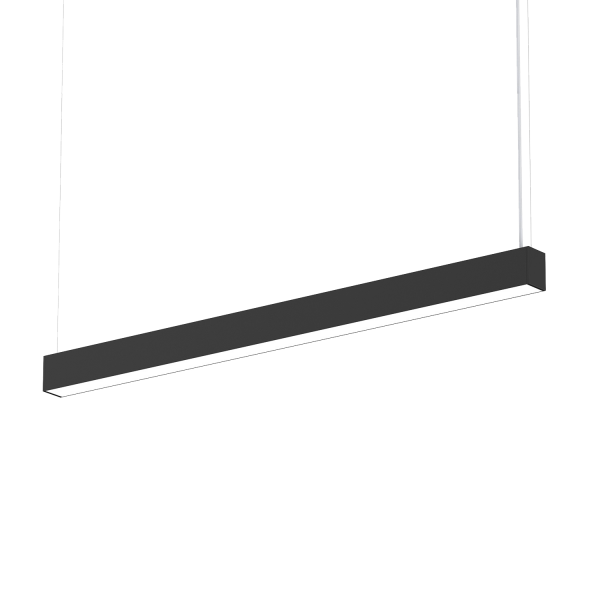

LUMINAIR77A

OPTICAL SYSTEM

Lifetime: 50 000 h (L-70)
Light source: SMD LED
Polymer optics

STRUCTURE

Cooling, passive
Aluminium body, extruded
CE Qualification
Easy to assemble
Protection: IP20

DOWNLOADS

▼ 301297 Installation guide
▼ 301297 Datasheet

APPLICATION

Indoors
Institutions
Hotels
Public areas
Shopping malls
Offices

VARIANTS

Ordering Code Light Output
[lm]		 CRI System Power
[W]		 Color Temperature
[K]		 Beam Angle Dimming Dimensions
[mm]		 Warranty
[year]		 Eulumdat
301297 4500 >80 45 4000 110° - 1512x57x76 5 ▼
